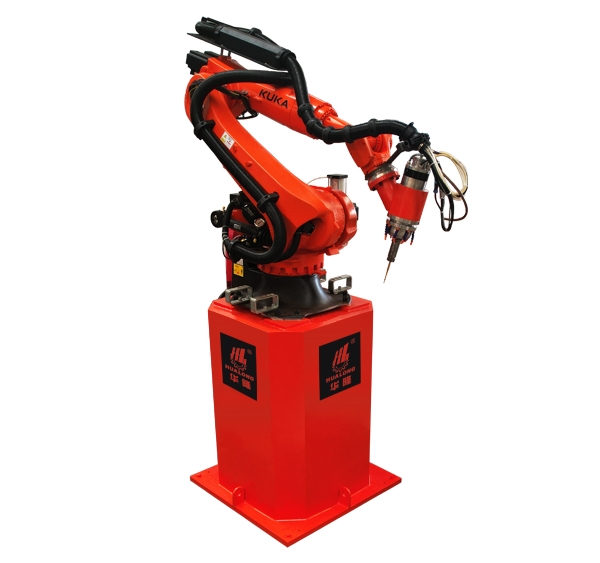

7 Axis Robot Arm CNC RouterHLRB-7A3D 7轴机器人

领跑智能制作新“石”代

7 Axis Robot Arm CNC RouterHLRB-7A3D 7轴机器人

单位隶属企业品牌:华隆 隶属种别:雕镂设备

想领会更多相干产物信息,请接洽咱们!

0594-2197723
hualongmc@163.com
我要征询
  • 产物申明
  • 手艺参数

推(tui)销自己可留(liu)言评论德律风号,人们会与您(nin)约见!

Purchase please leave a message phone and email, we will contact you!

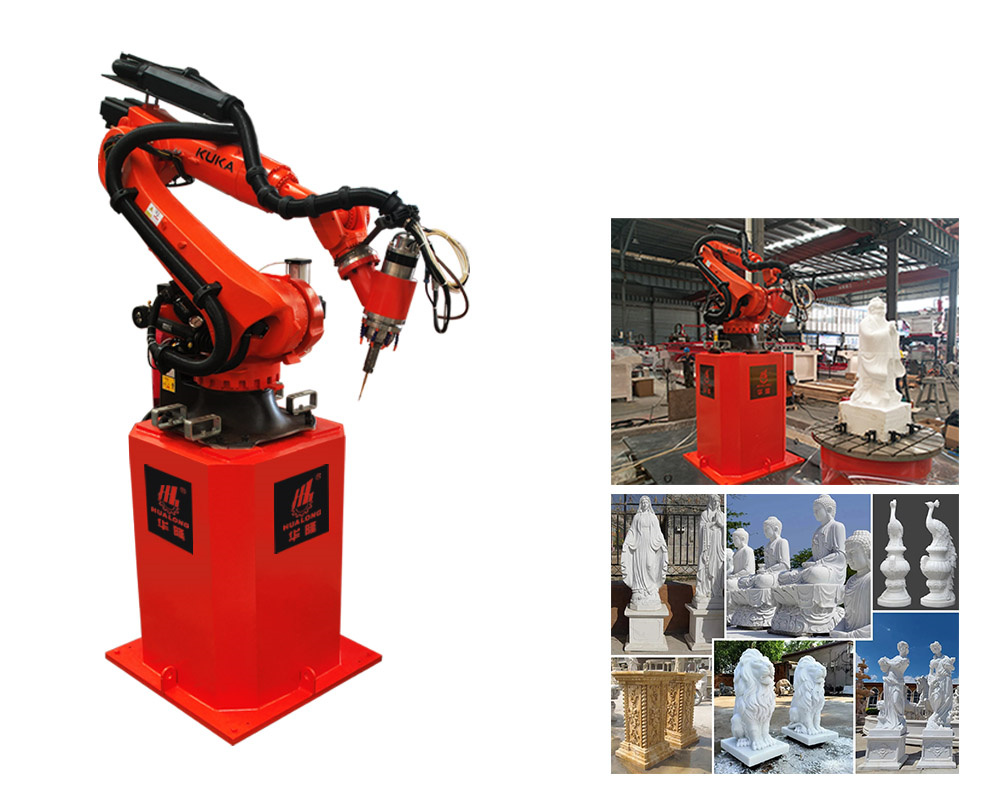

HLRB-7A3D七轴机器人是在库卡机器人的根本上,专为3D石雕工艺设想的主动化集成二次开辟产物,接纳离线编程体系Sprut CAM对庞杂三维外型雕塑主动化加工,设置装备摆设能够矫捷变革,具备任务速率快、高精度(高速轴集成在手臂上)、多功效、主动化、操纵便利等长处。今朝在异型石材雕镂、石膏产物雕镂、泡沫产物雕镂、陶瓷模具、玻璃钢成品等圆雕、浮雕范畴都已构成了焦点手艺的堆集。
HLRB-7A3D 7 Axis Robot is an automation integrated and secondary developedproduct on the base of KUKA robot, specially  designed for 3D stone carving process, very strong, high- precision (high-speed shaft integrated in the arm), verstile and easy to operate.It uses the offline programming system Sprut CAM to perform complex workpiece processing. The configuration can be changed at will. The robot can work normally even in harsh environments, with a service life of up to 15 years and an average time between accidents as long as 70,000 hours.


Features:
(1) Work quickly and efficiently with extremely high continuous track accuracy
(2) Working circumference of 3100 mm
(3) The software can realize the automation of complex 3D modelling sculpture processing
(4) Routing robots can produce more parts per hour than manual routing or CNC machine routing
(5) Robots increase productivity, repeat🐎ability, and quality while helping to simplify a tedious and complex application.


接洽咱们,获得完全计划!
Contact us to obtain the complete solution!




手艺参数

TECHNICAL DATA

HLRB-7A3D 7 Axis Robot

生活额定负载

Actual Load

210 kg
最大程度臂展 Max. Armspread 2700 mm
最大的手工加工尺码 Max. Processable Size 1000x2500mm
翻转展转每日任务台直径为 Diameter of Rotation Worktable 1000 mm
轴工作电压 Spindle power 15 kw
极限设备的主轴轉速 Max. Rotating Speed of Spindle

18500 rpm/min

出现位置计算精度 Repeat positioning accuracy

< +/- 0.06 mm

撑持的物件 Tools supported

粗加工(gong)制作锯/立倒角𒆙刀(dao)/立立倒角刀(dao)/抛光剂轮(lun)

小软件 Offline Software Sprut CAM

轴(zhou) 1 的促销活(huo)动投资✤(zi)规模(mo)和强度(du)

Motion range & Speed of Axis 1 +/-185° 86°/s

轴 2 的活动组织占比和带宽

Motion range & Speed of Axis 2 0°/-146° 84°/s

轴 3 的活动内容人(ren)数和波特率

Motion range & Speed of Axis 3 +155°/ -119° 84°/s

轴 4 的活動规模性和传输率

Motion range & Speed of Axis 4 +/-350° 100°/s

轴 5 的项目整体规(gui)模和传送(song)速(su)度

Motion range & Speed of Axis 5 +/-125° 110°/s

轴 6 的移动规模化和(ꦆhe)传(chuan)输(shu)率(lv)

Motion range & Speed of Axis 6 +/-350° 184°/s

轴(zhou) 7 的生活(huo)建(jian)设规模和时延

Motion range & Speed of Axis 7

无穷扭折 84°/s




贴心注意:如果是想把握越多关键点,技术参数、标准化、报价和补救年度计划,请洽谈咱俩。
